Opening Voya Files from Payroll Integrations

Ensure that you have MFA enabled on your Payroll Integrations account before completing the below steps. If you have not yet enabled MFA, you can do so by following the guide found here.

1. Select your company name on the left side of the screen.


2. Select the Payroll Activity Tab

3. Click the Download button on the right

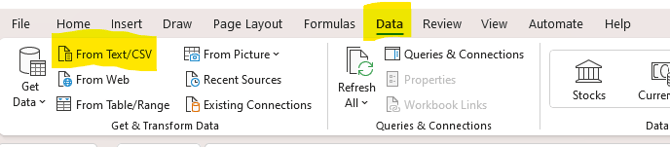

4. Open a blank workbook in Excel and navigate to the Data tab, Select “From Text/CSV”

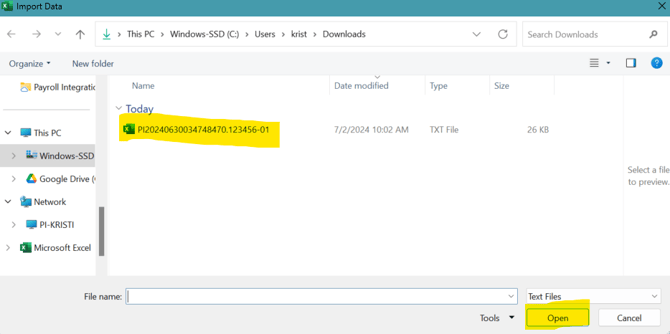

5. Find the file you just downloaded and select Open or Import

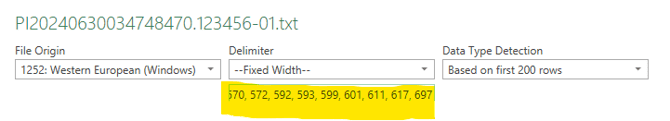

6.  Replace the text under "Fixed Width" with the following, and hit Enter or Load

0, 7, 13, 14, 22, 26, 35, 45, 55, 59, 79, 94, 95, 120, 145, 165, 167, 172, 176, 177, 197, 198, 199, 207, 215, 223, 231, 239, 247, 251, 255, 259, 260, 269, 270, 279, 280, 289, 290, 299, 300, 309, 310, 319, 322, 331, 334, 343, 346, 355, 358, 367, 370, 379, 382, 391, 392, 393, 401, 412, 423, 434, 445, 456, 467, 478, 479, 488, 489, 490, 495, 496, 497, 498, 538, 542, 552, 560, 570

7. Review file, and refer to the below specs to find out which column is which.

FIELD ID	FIELD NAME
1	RECORD TYPE
2	EMPLOYER ID
3	PAYROLL CYCLE
4	PAY DATE
5	IRS CODE
6	SSN
7	EMPLOYEE NUMBER
8	DEPARTMENT CODE
9	LOCATION CODE
10	LAST NAME
11	FIRST NAME
12	MI
13	ADDRESS LINE 1
14	ADDRESS LINE 2
15	CITY
16	STATE
17	ZIP CODE
18	ZIP EXTENSION
19	GENDER
20	RESERVED
21	MARITAL STATUS
22	EMPLOYEE STATUS CODE
23	DATE OF BIRTH
24	DATE OF ORIGINAL HIRE
25	DATE OF TERMINATION
26	DATE OF REHIRE
27	LEAVE OF  ABSENCE START DATE
28	LEAVE OF  ABSENCE END DATE
29	PLAN YTD HOURS
30	CURRENT PERIOD HOURS
31	ANNIVERSARY HOURS
32	SOURCE CODE 1
33	CONTRIBUTION AMOUNT SOURCE #  1
34	SOURCE CODE 2
35	CONTRIBUTION AMOUNT SOURCE # 2
36	SOURCE CODE 3
37	CONTRIBUTION AMOUNT SOURCE # 3
38	SOURCE CODE 4
39	CONTRIBUTION AMOUNT SOURCE # 4
40	SOURCE CODE 5
41	CONTRIBUTION AMOUNT SOURCE # 5
42	SOURCE CODE 6
43	CONTRIBUTION AMOUNT SOURCE # 6
44	LOAN NUMBER
45	EMPLOYEE LOAN PAYMENT
46	LOAN NUMBER
47	EMPLOYEE LOAN PAYMENT
48	LOAN NUMBER
49	EMPLOYEE LOAN PAYMENT
50	LOAN NUMBER
51	EMPLOYEE LOAN PAYMENT
52	LOAN NUMBER
53	EMPLOYEE LOAN PAYMENT
54	LOAN NUMBER
55	EMPLOYEE LOAN PAYMENT
56	UNION MEMBER
57	EMPLOYEE ELIGIBILITY CODE
58	RESERVED
59	YTD GROSS COMPENSATION
60	RESERVED
61	YTD TEST (ADP/ACP) COMPENSATION
62	YTD ALLOCATION/BENEFIT COMPENSATION
63	RESERVED
64	ANNUAL SALARY
65	MISCELLANEOUS  COMPENSATION
66	RESERVED
67	RESERVED
68	KEY EMPLOYEE INDICATOR
69	RESERVED
70	RESERVED
71	HIGHLY COMPENSATED EMPLOYEE
72	NON-RESIDENT ALIEN?
73	RESERVED
74	EMAIL ADDRESS
75	TIER GROUP
76	CLIENT DATA 1
77	CLIENT DATE 1
78	FILLER



The Source Codes for Contributions are:

A	EMPLOYEE PRE TAX BASIC
D	EMPLOYER MATCHING
E	EMPLOYEE PRE SUPPLEMENTAL
F	EMPLOYER PROFIT SHARING
G	ROTH
K	EMPLOYEE AFTER TAX BASIC
P	QNEC
V	QMAC
W	SAFE HARBOR NON-ELECTIVE
X	SAFE HARBOR MATCH
1	QACA Match
